Wholesale product price may vary. Please request for latest price before placing order.
Delivery charge will be based on location. We'll call you to confirm order and delivery charge.
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

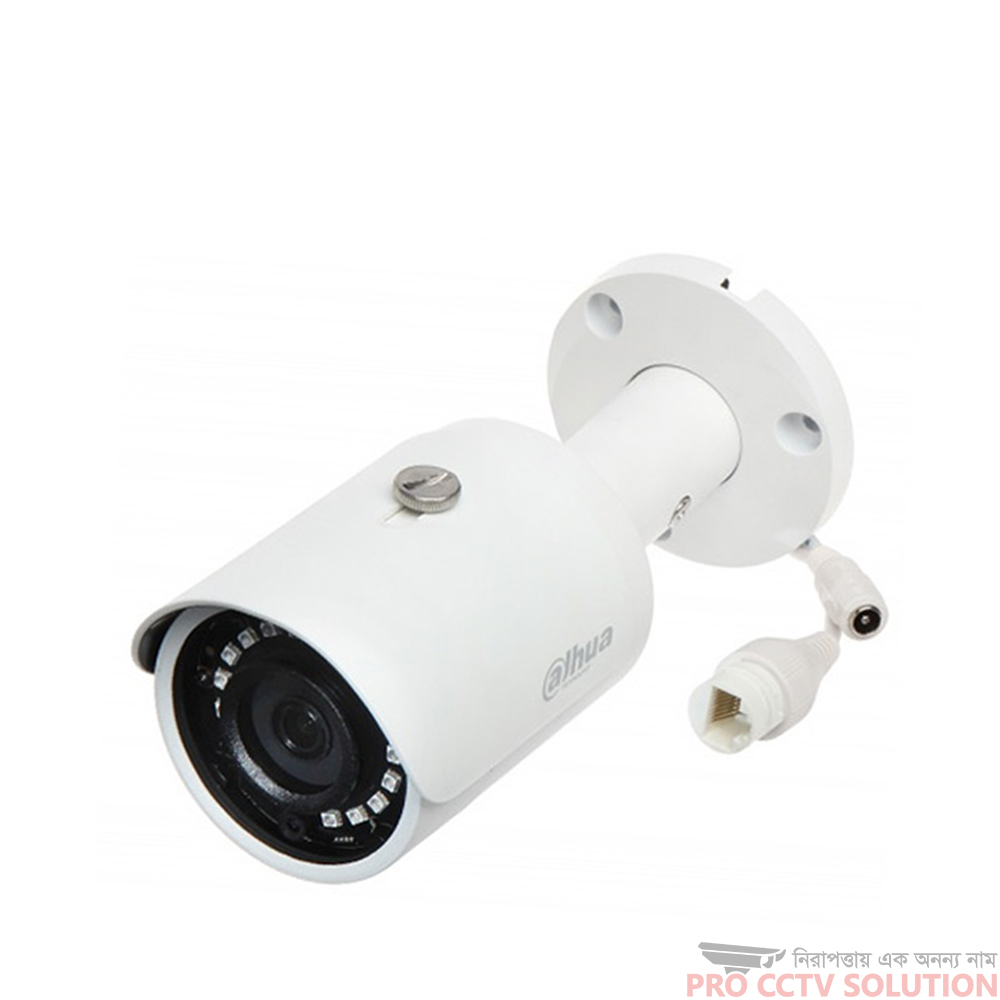

| Model:Image Sensor: | IPC-HFW1230SP1/2.7” 2Megapixel progresive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Effective Pixels: | 1920(H) x1080(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM/ROM: | 256MB/128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System: | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed: | Auto/Manual, 1/3~1/100000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Illumination: | 0.08Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio: | More than 50dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR Distance: | Distance up to 30m(98ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR On/Off Control: | Auto/ Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR LEDs: | 18 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type: | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type: | Board-in | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length: | 2.8 mm (3.6 mm optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture: | F2.0/F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle of View: | H:104°/92°,V:55°/50° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focus Control: | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance: | 0.6m(0.9m) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression: | H.265/H.264H/MJPEG(Sub Stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec: | Support H.265+/H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Streaming Capability: | 2 Streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution: | 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frame Rate: | Main Stream: 1080P(1 ~ 25/30fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sub Stream: D1(1 ~ 25/30fps) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control: | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate: | H.265: 12K ~ 6400Kbps H.264: 32K ~ 10240Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night: | Auto(ICR) / Color / B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC Mode: | BLC / HLC / DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control: | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction: | 3D DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
